TruSeq Custom Amplicon Kit Dx

A validated, FDA-regulated kit enabling clinical laboratories to design their own next-generation sequencing assays for use on the MiSeqDx and NextSeq 550Dx systems.

This product is only available in select locations. Please select the location where you would like this product to be shipped to see availability.

Overview

The TruSeq Custom Amplicon Kit Dx is an FDA-regulated amplicon sequencing kit that enables clinical labs to develop their own next-generation sequencing (NGS) assays for use on the FDA-regulated MiSeqDx and NextSeq 550Dx instruments.

  • Flexible assay design – Developed to meet individual, customer-defined needs

  • Validated kit – Verified performance specifications when used with Illumina instruments and reagents

  • Fast, reproducible results – Consistent results between multiple operators and systems

Flexible Assay Design

With the TruSeq Custom Amplicon Kit Dx, molecular diagnostics labs develop assays using their own oligonucleotide probe designs. The kit is optimized for use with formalin-fixed, paraffin-embedded (FFPE) samples and whole blood. This flexibility enables labs to expand the number of applications they can provide to meet customer needs.

Validated Kit

The TruSeq Custom Amplicon Kit Dx is validated to ensure consistent performance between lots, enabling long-term assay use, and facilitating change management.

High Assay Reproducibility

As demonstrated by a precision study, data produced using the TruSeq Custom Amplicon Kit Dx are highly reproducible.* Together with the MiSeqDx or NextSeq 550Dx, the TruSeq Custom Amplicon Kit Dx offers the accuracy and reliability needed to bring NGS capabilities into the clinical laboratory.

*See supporting data below


Intended Uses

TruSeq Custom Amplicon Kit Dx

The Illumina TruSeq Custom Amplicon Kit Dx is a set of reagents and consumables used to prepare sample libraries from DNA extracted from peripheral whole blood and formalin-fixed, paraffin-embedded (FFPE) tissue. User-supplied analyte specific reagents are required for the preparation of libraries targeting specific genomic regions of interest. The generated sample libraries are intended for use on Illumina's high-throughput DNA sequence analyzers.

TruSeq Custom Amplicon Dx – FFPE QC Kit

The Illumina TruSeq Custom Amplicon Dx – FFPE QC Kit is a set of reagents used to determine the amplification potential of genomic DNA (gDNA) extracted from formalin-fixed, paraffin-embedded (FFPE) samples.

MiSeqDx Reagent Kit v3

The Illumina MiSeqDx Reagent Kit v3 is a set of reagents and consumables intended for sequencing of sample libraries when used with validated assays. The MiSeqDx Reagent Kit v3 is intended for use with the MiSeqDx instrument and analytical software.

MiSeqDx Instrument

The MiSeqDx instrument is intended for targeted sequencing of DNA libraries from human genomic DNA extracted from peripheral whole blood or formalin-fixed, paraffin-embedded (FFPE) tissue, when used for in vitro diagnostic (IVD) assays performed on the instrument. The MiSeqDx instrument is not intended for whole genome or de novo sequencing. The MiSeqDx instrument is to be used with registered and listed, cleared, or approved IVD reagents and analytical software.

NextSeq 550Dx Instrument (United States)

The NextSeq 550Dx instrument is intended for targeted sequencing of DNA libraries from human genomic DNA extracted from peripheral whole blood or formalin-fixed, paraffin-embedded (FFPE) tissue, when used for in vitro diagnostic (IVD) assays performed on the instrument. The NextSeq 550Dx instrument is not intended for whole genome or de novo sequencing. The NextSeq 550Dx instrument is to be used with registered and listed, cleared or approved, IVD reagents and analytical software.

NextSeq 550Dx Instrument (European Union)

The NextSeq 550Dx instrument is intended for sequencing of DNA libraries when used with in vitro diagnostic (IVD) assays performed on the instrument. The NextSeq 550Dx instrument is to be used with specific registered, certified or approved IVD reagents and analytical software.

NextSeq 550Dx High-Output Reagent Kit v2 (300 cycles)

The Illumina NextSeq 550Dx High-Output Reagent Kit v2 (300 cycle) is a set of reagents and consumables intended for sequencing of sample libraries when used with validated assays. The kit is intended for use with the NextSeq 550Dx instrument and analytical software.

NextSeq 550Dx High Output Reagent Kit v2.5 (300 cycles)

The Illumina NextSeq 550Dx High Output Reagent Kit v2.5 (300 cycles) is a set of reagents and consumables intended for sequencing of sample libraries when used with validated assays. The kit is intended for use with the NextSeq 550Dx instrument and analytical software.


Specifications


Required products

Required Materials

For the TruSeq Custom Amplicon Kit Dx, use one of the following plate fixture kits to assist in correctly arranging index primers for PCR amplification.

  • TruSeq Index Plate Fixture Kit (FC-130-1005)
  • TruSeq Index Plate Fixture & Collar Kit (FC-130-1007)
/ Results

Applications

Example workflow

2
Sequence
3

Related applications and methods

Figures

Streamlined Custom Assay Workflow

The TruSeq Custom Amplicon Kit Dx enables clinical laboratories to develop their own NGS assays for use on the MiSeqDx or NextSeq 550Dx instruments.

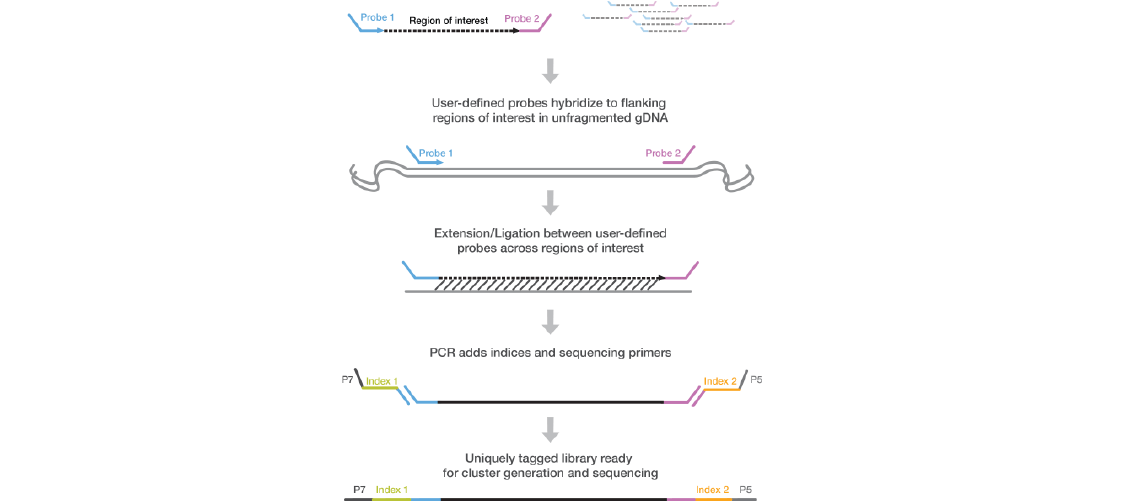

Library Preparation Chemistry

The TruSeq Custom Amplicon Kit Dx uses customer-designed probes to capture and sequence specific targets.

Detection Capability of TruSeq Custom Amplicon Kit Dx

Target specifications allow the potential for sequencing > 90% of the exons in RefSeq genes, depending upon assay design.

Parameter Germline Somatic
Genomic Context
GC content 19–78% 19–73%*
PolyA length ≤ 8 ≤ 8
PolyT length ≤ 10 ≤ 10
PolyG length ≤ 7 ≤ 6
PolyC length ≤ 6 ≤ 6
Dinucleotide repeat length ≤ 11× ≤ 4×
Trinucleotide repeat length ≤ 5× ≤ 5×
Variants
Single nucleotide polymorphisms Yes Yes, 5% limit of detection
Insertion length ≤ 24bp ≤ 24bp
Deletion length ≤ 25bp ≤ 25bp

Sequencing runs performed with the MiSeqDx Reagent Kit v3.

* Up to 78% with NextSeq 550Dx instrument.

High Assay Reproducibility

To demonstrate the high reproducibility of data produced using the TruSeq Custom Amplicon Kit Dx, a within-laboratory precision study was performed with a representative assay. The study used multiple operators, instruments, and lots across eight runs.

Analysis Metric Variant Type MiSeqDx (8 runs) NextSeq 550Dx (9 runs)
Germline PPA SNV 99.8% > 99.9%
PPA Insertion 99.1% 98.9%
PPA Deletion 99.8% 100%
NPA 100% 100%
Somatic PPA SNV 100% 99.9%
PPA Insertion 100% 99.9%
PPA Deletion 100% 99.9%
NPA > 99.9% > 99.9%

Percentages represent the lowest value across runs. Abbreviations: PPA = positive percent agreement, NPA = negative percent agreement, SNV = single nucleotide variant.

TruSeq® Custom Amplicon Kit Dx

20005718

Includes reagents and consumables for preparing up to 96 libraries from DNA extracted from peripheral whole blood and formalin-fixed, paraffin-embedded (FFPE) tissue. User-supplied analyte specific reagents are required for the preparation of libraries targeting specific genomic regions of interest. Purchase index plate fixture kits separately.

Sign in to add to cart or see pricing.

List Price:

Discounts:

TruSeq® Custom Amplicon Dx – FFPE QC

20006259

Includes reagents for determining the amplification potential of up to 48 samples of genomic DNA (gDNA) extracted from formalin-fixed, paraffin-embedded (FFPE). The kit supports four uses with 12 samples per use. For use with the TruSeq Custom Amplicon Kit Dx or other library preparation kits.

Sign in to add to cart or see pricing.

List Price:

Discounts:

TruSeq Index Plate Fixture Kit (2 fixtures)

FC-130-1005

Includes two TruSeq Index Plate Fixtures to support correctly arranging index primers for PCR amplification.

Sign in to add to cart or see pricing.

List Price:

Discounts:

TruSeq Index Plate Fixture & Collar Kit (2 each)

FC-130-1007

Assists in correctly arranging index primers for PCR amplification step. Includes two (2) TruSeq Index Plate Fixtures and two (2) Plate Collars.

Sign in to add to cart or see pricing.

List Price:

Discounts:

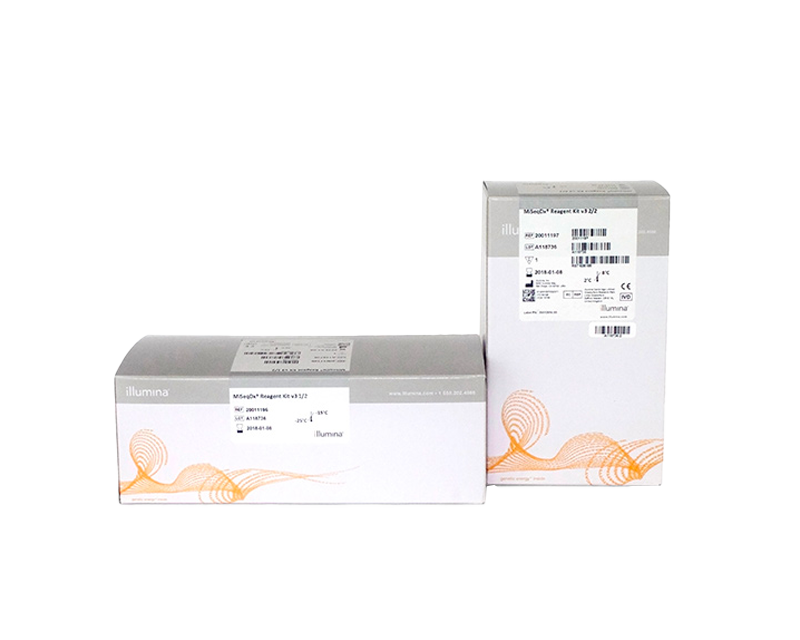

MiSeq Dx Reagent Kit v3

20037124

Includes one flow cell and one prefilled cartridge containing clustering and sequencing reagents to support one run of sample libraries on the MiSeqDx System.

Sign in to add to cart or see pricing.

List Price:

Discounts:

NextSeq550Dx Reagent Kit v2(300 cyc) IVD

20019554

NextSeq 550Dx High Output Reagent Kit v2 (300 Cycles) is a set of reagents and consumables intended for sequencing of sample libraries when used with validated assays. The kit is intended for use with the NextSeq 550Dx instrument and analytical software.

Sign in to add to cart or see pricing.

List Price:

Discounts:

NextSeq 550Dx High Output Reagent Kit v2.5 (300 cycles) IVD

20028871

Includes one high output flow cell, one buffer cartridge, and one reagent cartridge containing clustering and sequencing reagents to support a 300-cycle run on the NextSeq 550Dx System. All products registered for In Vitro Diagnostic sequencing.

Sign in to add to cart or see pricing.

List Price:

Discounts:
