TruSight Oncology 500 ctDNA v2

Enable CGP with a pan-cancer panel capable of detecting key IO gene signatures (TMB, MSI) plus all main variant classes from ctDNA in blood plasma.

3-4 days from purified nucleic acid to variant report

Assay time

~1.5-2.5 hr for library prep and enrichment

Hands-on time

20 ng cfDNA (4 ml of plasma)

Input quantity

See full details in the specifications table

This product is only available in select locations. Please select the location where you would like this product to be shipped to see availability.

TruSight Oncology 500 ctDNA v2 is now available with improved sensitivity using lower cfDNA input, a faster turnaround time, and a more streamlined workflow.

Overview

TruSight Oncology 500 ctDNA v2 is a pan-cancer NGS assay that enables in-house comprehensive genomic profiling (CGP) of circulating tumor DNA (ctDNA) in blood plasma for research.

  • Leverage minimally invasive blood samples as a complement or alternative to tissue biopsy

  • Target 523 genes to assess DNA variants across major variant classes (SNV, MNV, indels, CNV, and gene rearrangements), plus key immuno-oncology gene signatures (TMB, MSI)

  • Achieve ultra-sensitive detection from minimal cfDNA input

  • Get final reports in <4 days from cfDNA with a streamlined workflow

Low-level biomarker detection

Achieve sensitive and accurate detection (0.2% VAF for SNVs) with low inputs (20 ng) using UMI-based hybrid-capture library prep and deep sequencing.

Integrated bioinformatics

DRAGEN secondary analysis powers a rapid variant calling algorithm on-premises or in the cloud with Illumina Connected Analytics. Access insights using integrated reporting with Illumina Connected Insights* or Velsera.

Streamlined workflow

Advanced chemistry and extensive workflow optimization enable a single-day library prep plus enrichment for a total turnaround time of <4 days. Automation-friendly kits and methods enable increased efficiencies.

*Not available in all countries. Illumina Connected Insights supports user-defined tertiary analysis through API calls to third-party knowledge sources.


Enable CGP with a comprehensive portfolio

Maximize chances of identifying an actionable alteration with the TruSight Oncology 500 product line.

TruSight Oncology 500 ctDNA v2

Analyze circulating tumor DNA (ctDNA) in blood plasma with similar DNA panel content as TruSight Oncology 500.



HRD is only available with the addition of the TruSight Oncology 500 HRD kit to the TruSight Oncology 500 kit. Not available in Japan.


Specifications


Required products

To run TruSight Oncology 500 ctDNA v2, you need:

To analyze with the DRAGEN pipeline, you need:

To generate a final variant report, you need:

* Not available in all countries. Illumina Connected Insights supports user-defined tertiary analysis through API calls to third-party knowledge sources.

 Velsera was previously known as Pierian. Other commercial options are available.

/ Results

Applications

Example workflow

*Novaseq X and NovaSeq 6000Dx (in RUO mode) compatibility to come in 2024.

Not available in all countries. Illumina Connected Insights supports user-defined tertiary analysis through API calls to third-party knowledge sources.


Project recommendations

Instrument Recommended number of samples Read length
NovaSeq 6000 System

24 samples per run (S4 flow cell), 800M paired-end reads, 35,000x coverage

2 × 150 bp

NovaSeq 6000 System

8 samples per run (S2 flow cell), 800M paired-end reads, 35,000x coverage

2 × 150 bp


Related applications and methods

Documentation

Product literature

Compare

TruSight Oncology 500 ctDNA v2 TruSight Oncology 500 TruSight Oncology 500 High-Throughput
Analytical sensitivity ≥ 95% (small variants, ≥ 0.5% VAF)
Analytical specificity ≥ 99.995% (small variants, ≥ 0.5% VAF)
Assay time 3-4 days from purified nucleic acid to variant report 4–5 days from sample to results 4–5 days from sample to results
Cancer type Pan-cancer, Solid tumor Pan-cancer, Solid tumor Pan-cancer, Solid tumor
Content specifications Targeted selection of 523 genes (full coding sequence) for a total of 1.94Mb panel size.
• Immuno-oncology biomarker coverage: TMB and MSI
• Guideline coverage: Broad coverage of key guidelines for multiple solid tumor types
• Clinical trial coverage: Over 600 clinical trials (based on Pierian clinical knowledgebase, as of February 2023)
Targeted sequencing of DNA from 523 genes and RNA from 55 genes for a total of 1.94 Mb panel size. MSI and TMB measurement included.  The optional TruSight Oncology 500 HRD kit (not available in Japan) content includes coverage of ~25K SNPs to assess homologous recombination deficiency through a comprehensive genomic instability score (LOH+TAI+LST) powered by Myriad Genetics.  Targeted sequencing of DNA from 523 genes of interest and RNA from 55 genes, for a total of 1.94Mb panel size. MSI and TMB measurement included.
Description Provides a noninvasive method for profiling solid tumors for cancer research applications through comprehensive genomic profiling of liquid biopsy samples (ctDNA from blood plasma). This liquid biopsy approach provides insights about intra- and inter-tumor heterogeneity using a minimally invasive sample collection approach to complement tissue-based CGP. Assay that enables comprehensive genomic profiling from FFPE tissue and runs on the NextSeq 550 System or NextSeq 550Dx Instrument (in Research Mode) and can batch up to eight samples at a time. A high-throughput comprehensive NGS assay to identify key biomarkers in guidelines and > 1K clinical trials from a streamlined workflow using the NovaSeq 6000 System or NovaSeq 6000Dx Instrument (in Research Mode). Includes coverage of immuno-oncology biomarkers MSI and TMB.
Gene count 523 genes for DNA
Hands-on time ~1.5-2.5 hr for library prep and enrichment ~2.5 hr for automated workflow
~10.5 hr for manual workflow
~2.5 hr for automated workflow
~10.5 hr for manual workflow
Input quantity 20 ng cfDNA (4 ml of plasma) 40 ng DNA and/or 40 ng RNA 40 ng DNA and/or 40–80 ng RNA
Instruments NovaSeq 6000 System NextSeq 550 System, NextSeq 550Dx in Research Mode, NextSeq 500 System NovaSeq 6000Dx in Research Mode, NovaSeq 6000 System
Mechanism of action Hybrid-capture chemistry
Method Targeted DNA sequencing, Target enrichment Targeted DNA sequencing, Targeted RNA sequencing, Target enrichment Targeted DNA sequencing, Targeted RNA sequencing, Target enrichment
Multiplexing Up to 8 on S2, and 24 on S4 using Xp-4 Lane workflow, 16 indexes maximum Up to 8-plex Up to 16-plex (SP flow cell), 32-plex (S1 flow cell), 72-plex (S2 flow cell), and 192-plex (S4 flow cell)
Nucleic acid type DNA DNA, RNA DNA, RNA
Specialized sample types Circulating tumor DNA, Blood FFPE tissue FFPE tissue
Species category Human Human Human
Technology Sequencing Sequencing Sequencing
Variant class Single nucleotide variants (SNVs), Insertions-deletions (indels), Copy number variants (CNVs) Gene fusions, Transcript variants, Single nucleotide variants (SNVs), Insertions-deletions (indels), Copy number variants (CNVs), Loss of heterozygosity (LOH), Somatic variants, Novel transcripts, Single nucleotide polymorphisms (SNPs), Structural variants Gene fusions, Somatic variants, Novel transcripts, Structural variants, Transcript variants, Single nucleotide variants (SNVs), Insertions-deletions (indels), Copy number variants (CNVs)

* Based on Pierian clinical knowledgebase, as of February 2023.

* NovaSeq 6000Dx System in RUO Mode requires a separate, stand-alone DRAGEN server for secondary analysis.

* NovaSeq X and NovaSeq 6000 Dx compatibility coming in 2024

Figures

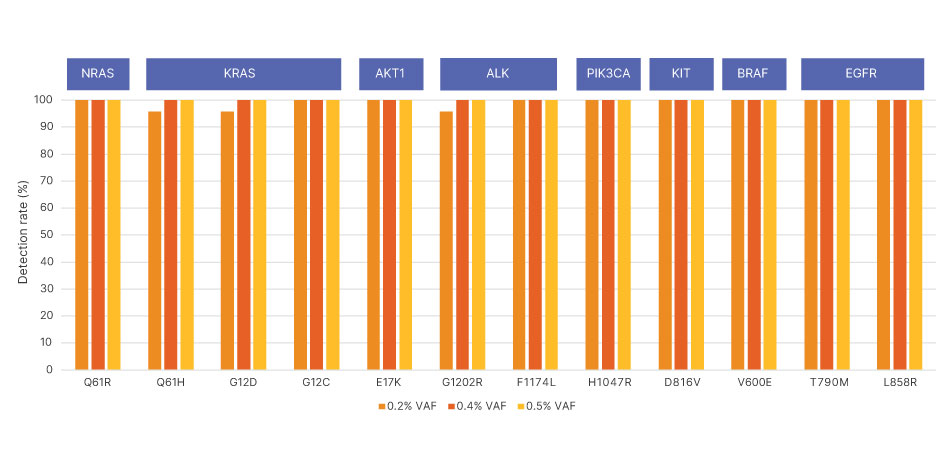

Small nucleotide variant detection at low VAF

Synthetic control samples with known variant allele frequency (VAF) for each single nucleotide variant were diluted to values ranging from 0.20%–0.50% VAF and analyzed by TruSight Oncology 500 ctDNA v2.

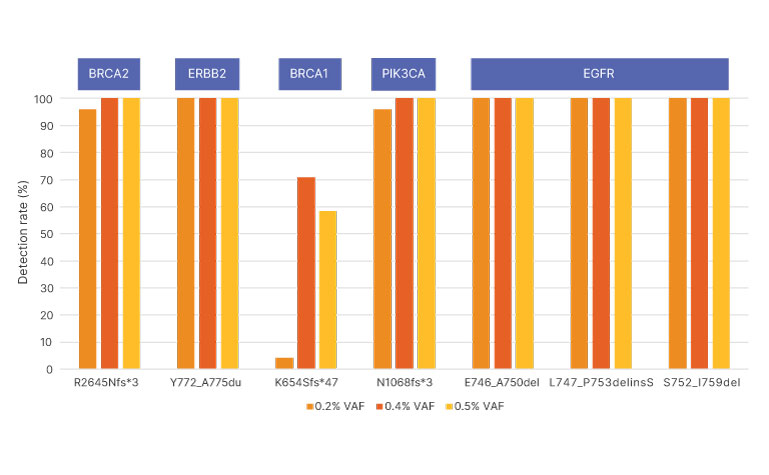

Indel detection at low VAF

Synthetic control samples with known VAF for each insertion or deletion were diluted to values ranging from 0.20%–0.50% VAF and analyzed by TruSight Oncology 500 ctDNA v2.

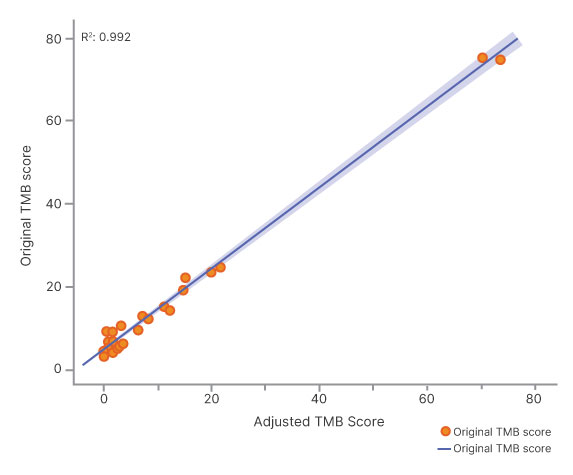

High TMB correlation compared to tumor-normal calling

Tumor-only workflow of TSO 500 ctDNA v2 utilizing advanced bioinformatics for germline and CH variant filtering produces highly concordant bTMB compared to a tumor-normal workflow.

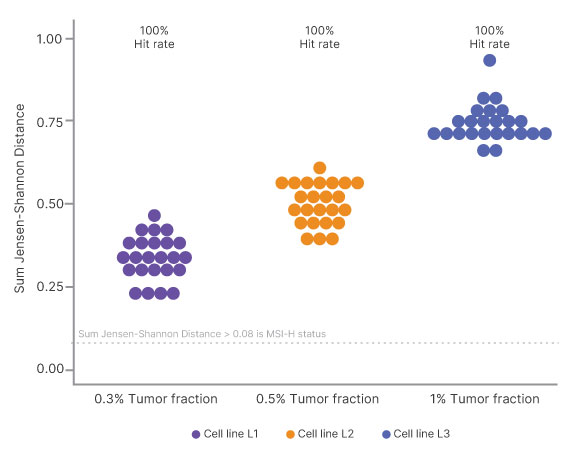

Sensitive MSI detection for immuno-oncology research

Microsatellite instability (MSI) was evaluated in 3 cell lines with known MSI-high status (samples 1–3) and detected down to 0.3% tumor fraction assessing up to ~2300 homopolymer sites.



Analytical performance for CNVs, LOD ≥1.3 fold for amplifications and ≤0.6 for deletions​

Lower relative MYC detection due to limit of detection approached faster due to fewer starting copies.​ Illumina data on file, 2023.

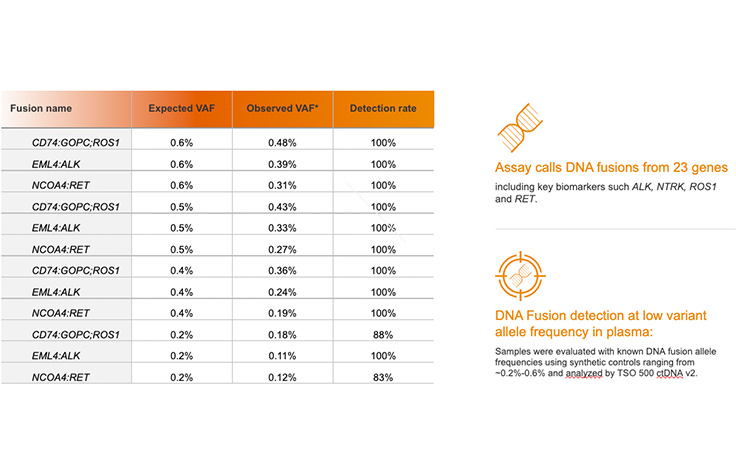

Analytical performance for gene rearrangements with detection at LOD (0.5%)​

VAF calculated by dividing the total number of supporting reads by the higher depth of the two sides of the breakpoint. Illumina data on file, 2023.
