Specifications for the iSeq 100 System

Lightweight, compact instrument makes sequencing simple while maintaining high data quality

iSeq 100 Specifications

Run Time 9.5–19 hrs

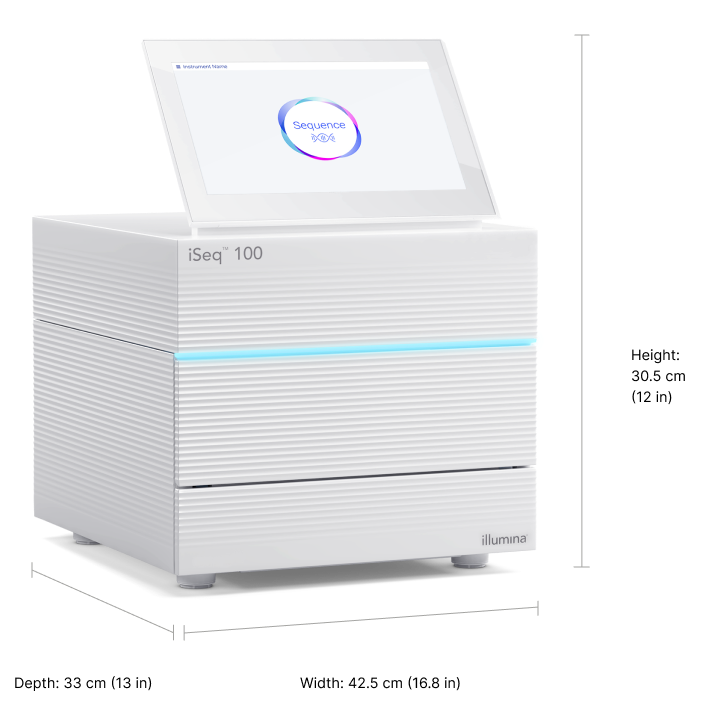

Instrument Dimensions 42.5 cm × 30.5 cm × 33 cm (16.8 in × 12 in × 13 in)
Weight 15.9 kg (35 lb)
Read Length Total Time Output
1 × 36 bp 9.5 hrs 144 Mb
1 × 50 bp 10 hrs 200 Mb
1 × 75 bp 11 hrs 300 Mb
2 × 75 bp 14 hrs 600 Mb
2 × 150 bp 19 hrs 1.2 Gb

*Install specifications are based on Illumina PhiX control library at supported cluster densities (174–200 k/mm2 clusters passing filter). Total times include cluster generation, sequencing, and base calling with quality scores on an iSeq 100 System.

iSeq 100 i1 Reagents
Single Reads 4 million
Paired-End Reads 8 million
iSeq 100 i1 Reagents
> 85% of bases higher than Q30 at 1 × 36 bp
> 85% of bases higher than Q30 at 1 × 50 bp
> 80% of bases higher than Q30 at 1 × 75 bp
> 80% of bases higher than Q30 at 2 × 75 bp
> 80% of bases higher than Q30 at 2 × 150 bp

*The percentage of bases > Q30 is averaged across the entire run.

iSeq 100 System Specification Sheet

System Specification Sheet

The smallest Illumina sequencing system delivers fast and efficient low-throughput sequencing for virtually any lab.

View Specification Sheet
Sequencing Quality Scores

Sequencing quality scores are a measure of the uncertainty of base calls, or the probability of a base call being wrong.

Learn More
Sequencing Coverage

Sequencing coverage requirements vary by application. Find out how to estimate and achieve your desired NGS coverage level.

Learn More
Paired-End vs. Single-Read Sequencing

Paired-end runs sequence both DNA ends, for easier analysis of rearrangements, novel transcripts, and more. Single-end runs offer an economical alternative.

Learn More
Sequencing by Synthesis (SBS) Technology

The iSeq 100 System harnesses proven Illumina sequencing by synthesis (SBS) technology to deliver highly accurate data and robust performance for multiple applications. SBS uses a reversible-terminator method, with fluorescently labeled nucleotides to detect single bases as they are incorporated into growing DNA strands.

Learn More

One-Channel SBS Technology

The iSeq 100 System combines Illumina SBS with complementary metal-oxide semiconductor (CMOS) technology to deliver one-channel SBS chemistry. One-channel SBS on a CMOS chip helps to reduce instrument cost and allows for a smaller benchtop footprint, all while delivering accurate data.
